Tecalemit 5T Service & MOT Class VII Scissor Lift SF9065EV

Product Code: SF 9065EV
  • Heavy duty scissor lift
  • Mechanical & hydraulic safety systems
  • Suitable for long wheelbase vehicles
  • Complete range of platform options
ONLINE QUOTE

If you’d like us to put together a custom quote just for you, add as many products to your cart then submit a quote request. We will send a no obligation quote via email within 2 working days.

Alternatively call: 01432 344 133

Clear
Service Contracts
Saracen After Sales Support
  • DESCRIPTION
  • SPECIFICATION
  • DELIVERY
  • PRODUCT MANUAL

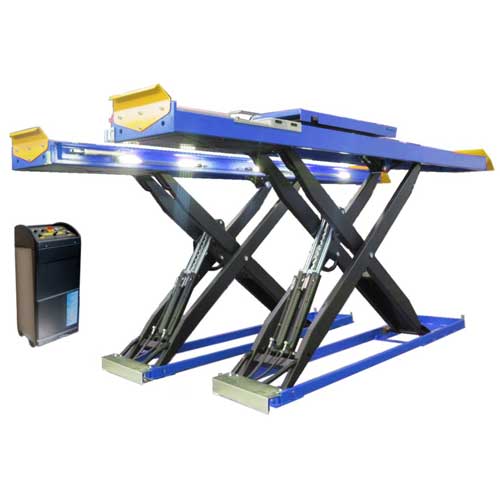

Tecalemit 5T Service & MOT Class VII Scissor Lift SF9065EV

Tecalemit 5T Service & MOT Class VII Scissor Lift SF9065EV range of long platform scissor lifts provides the complete solution for workshops servicing a broad range of cars and light goods vehicles. The vehicle lift is the largest revenue earner in the workshop and scissor lifts provide a super efficient space saving solution.

The SF/9065/EV can accommodate most cars and light goods vehicles up to a gross vehicle weight of 5000kg, creating a highly productive work bay. SF/9065/EV has a complete range of platform options which allow vehicle geometry work to be carried out in accordance with virtually all manufacturers’ procedures. In addition to the standard ‘flat’ platform Tecalemit offers 3 design options. Operators can choose a platform fitted with recesses for radius turning plates and rear slip plates enabling vehicle geometry checks and adjustments, or platforms fitted with an integral wheel free lifting system. The third platform variant is a combination of both integral lifting and slip plates.

The SF/9065/EV is designed primarily for installation into a floor recess, this should be prepared to Tecalemit specification.The lift requires a 3ph power supply via a 20 amp fused isolator. An air supply of 6-8 Bar is also required to operate the latching systems.

Pad height min: 330mm
Raised height: 2100mm + (565mm)
Motor supply: 400V 3kw/3ph – 50Hz
Max load: 5000kg
Lowering time: 40 secs
Net weight: 2000kg
Operation: Electro-hydraulic
Pneumatic Feed: 6-8bar
